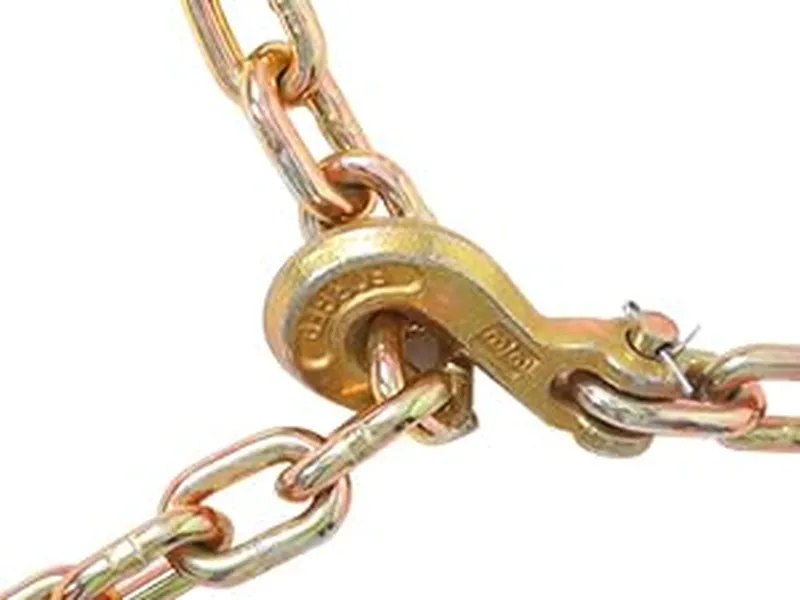

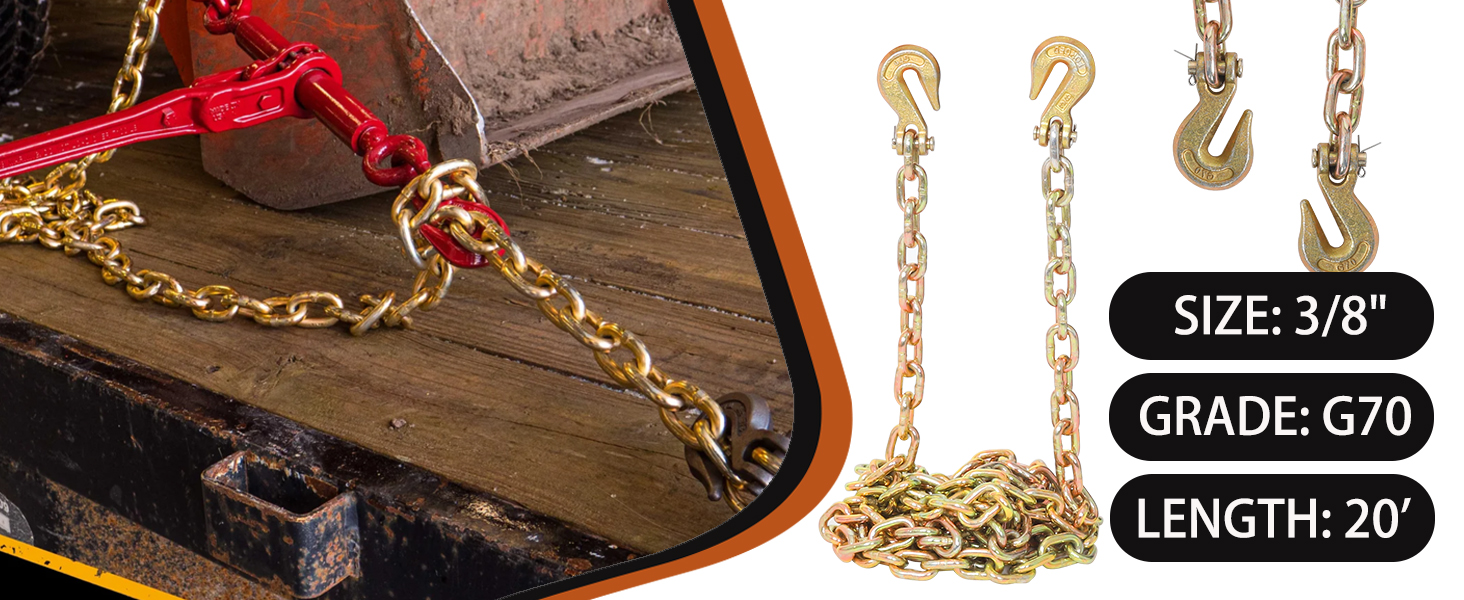

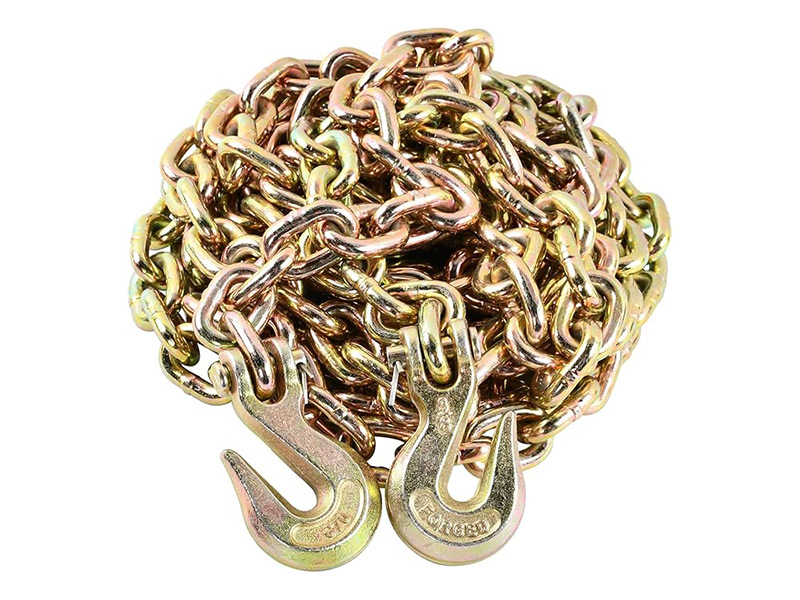

| Product Name | G70 Towing Transport Chain with Clevis Grab Hooks |
| Most Popular Size | 3/8″ x 20′ |
| Working Load Limit | 6,600 lbs |
| Breaking Strength | 26,400 lbs |
| Grade | G70 |
| Surface | Galvanized |
| Material | Alloy Steel |

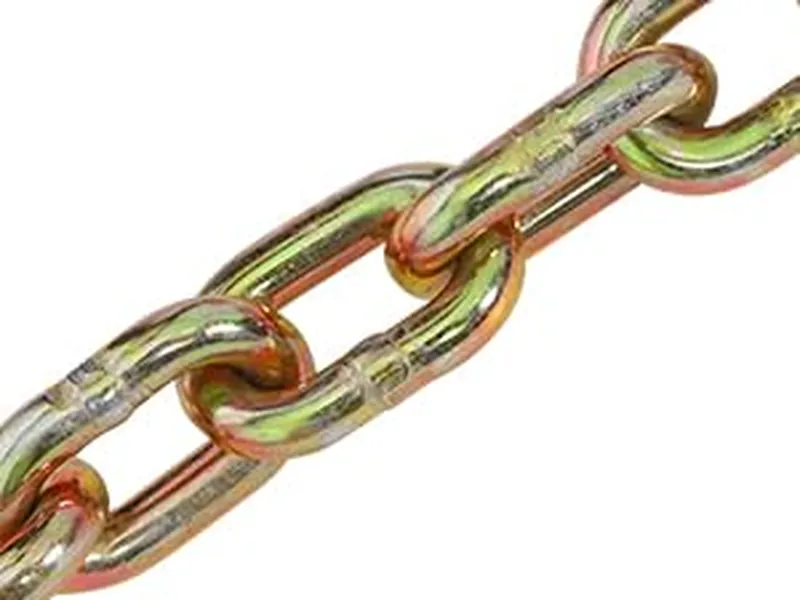

| Marks on Links | G70 stamped on links at regular intervals |
| Package | Iron Drum, Wooden Box, Carton or others as request |
| Origin | China |
| Source | Our own factory direct supply |
| ODM/OEM | Acceptable |
| NACM2010 G70 Chain | |||||||||||||
| Nominal Size | Material Diameter | Working Load Limit | Proof Load (min) | Min Breaking (Force) | Inside Length (max) | Inside Width (min) | |||||||
| IN | MM | IN | MM | LBS | KN | LBS | KN | LBS | KN | IN | MM | IN | MM |
| 1/4 | 7.0 | 0.281 | 7.0 | 3150 | 14 | 6300 | 28.0 | 12600 | 56.0 | 1.24 | 31.5 | 0.38 | 9.8 |
| 5/16 | 8.7 | 0.343 | 8.7 | 4700 | 20.9 | 9400 | 41.8 | 18800 | 83.6 | 1.29 | 32.8 | 0.44 | 11.2 |
| 3/8 | 10.0 | 0.406 | 10.3 | 6600 | 29.35 | 13200 | 58.7 | 26400 | 117.4 | 1.38 | 35.0 | 0.55 | 14.0 |
| 7/16 | 11.9 | 0.468 | 11.9 | 8750 | 38.85 | 17500 | 77.8 | 35000 | 155.4 | 1.64 | 41.6 | 0.65 | 16.6 |
| 1/2 | 13.0 | 0.531 | 13.5 | 11300 | 50.2 | 22600 | 100.4 | 45200 | 200.8 | 1.79 | 45.5 | 0.72 | 18.2 |
| 5/8 | 16.0 | 0.630 | 16.0 | 15800 | 70.2 | 31600 | 140.4 | 63200 | 280.8 | 2.20 | 56.0 | 0.79 | 20.0 |
| 3/4 | 20.0 | 0.787 | 20.0 | 24700 | 109.8 | 49400 | 219.6 | 98800 | 439.2 | 2.76 | 70.0 | 0.98 | 25.0 |

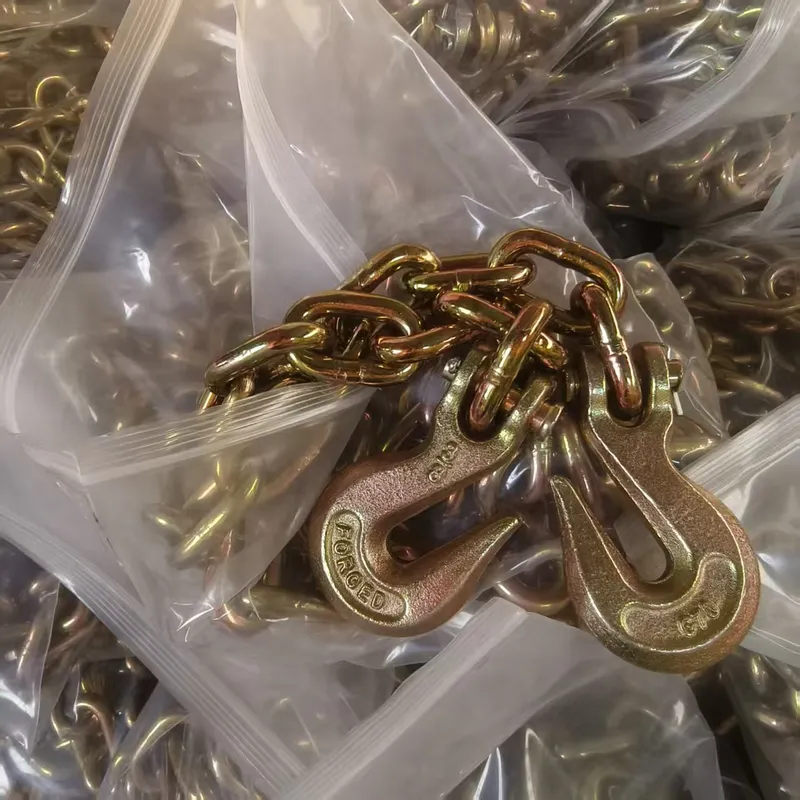

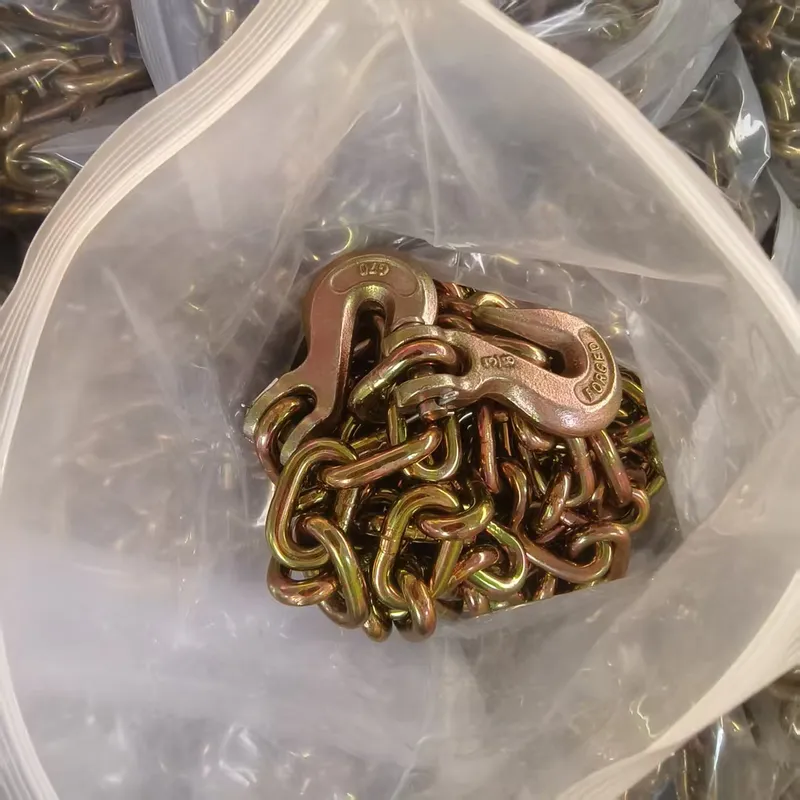

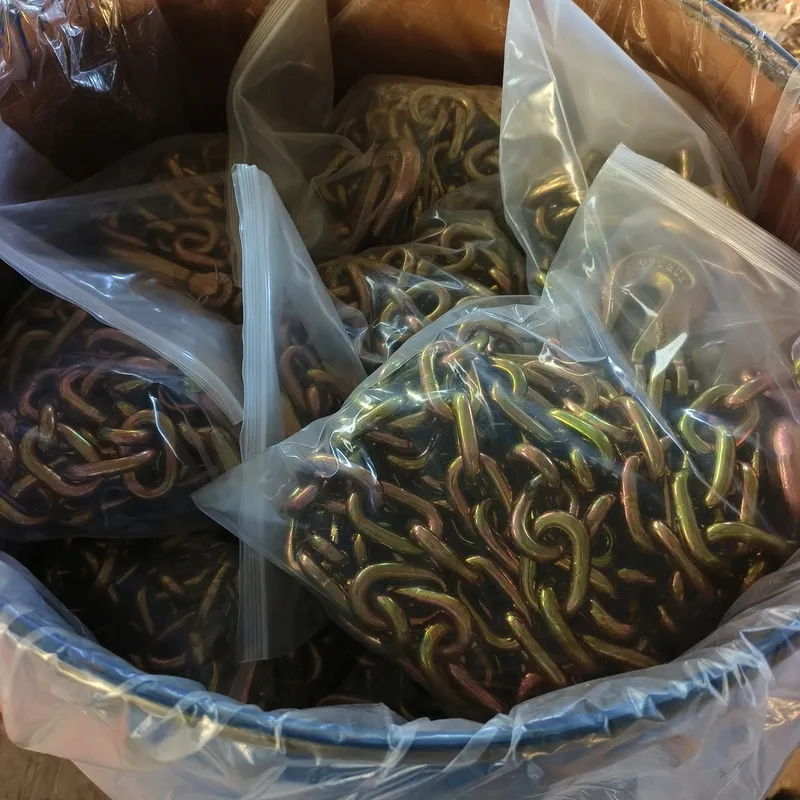

Main Packaging Method
Our Advantages
Focus on every process, make you satisfied,
save your costs and time !
Factory Direct Supply
Professional and Concentration in Link Chain Products
Reasonable and Competitive Price
Support Customization
Prompt Delivery
Thoughtful After-sales Service
Application
1. Trucking and Transportation: Securing cargo on flatbed trailers, open trailers, or truck beds during transportation. Fixing and fastening heavy equipment, machinery, or construction materials for transport.
2. Construction and Building: Fastening construction materials such as lumber, steel beams, or pipes for transportation to and from construction sites. Securing construction equipment and machinery on flatbed trucks.
3. Agriculture: Securing bales of hay, farm equipment, or other agricultural products during transport. Fastening heavy agricultural machinery or attachments for transportation.
4. Logging and Forestry: Fixing and securing logs or timber on logging trucks for transportation. Fastening forestry equipment and machinery on trailers.
Maritime:Securing cargo on shipping containers or ships during transit. Fastening heavy equipment or goods on cargo ships.
5. Material Handling: Securing heavy materials or products on industrial carts or platforms for internal material handling within a facility.
7. Towing and Recovery: Fastening and securing vehicles on tow trucks or recovery vehicles during transportation.
8. Outdoor Events and Entertainment: Securing stage equipment, sound systems, or other heavy objects for transport to event locations.
9. Recreational Vehicles: Securing and fastening equipment or gear on trailers, such as those used for transporting ATVs, motorcycles, or boats.
10. Warehousing and Distribution: Securing heavy pallets or items on flatbed trucks for distribution. Fastening machinery or equipment for transport between warehouse facilities.
