Anchor Chain

The anchor chain can be divided into two types: Stud Anchor Chain and Studless Achor Chain according to the structure of its links.
Anchor chain refers to a special chain that connects the anchor and the hull and transmits the anchor’s grip. It is often composed of anchor end links, intermediate links and end links. The length of the anchor chain is measured in sections, and the standard length of each anchor chain is 27.5m. The internodes are connected with connecting links or connecting shackles.

The main function of the anchor chain is to connect the anchor and the ship, and transmit the anchor’s holding force to the hull; when anchoring, the anchor chain thrown out has a certain weight, which can exert a certain degree of external force on the ship in the water such as wind and current. Buffering effect; the anchor chain in the horizontal bottom part maintains a level force on the anchor, which is conducive to the reliable bottom grasp of the anchor. At the same time, this part of the anchor chain can also provide a part of the anchoring force due to the blocking effect of the soil.

Get Free Quote

Product Description

Product Name Achor Chain
Structure Stud Anchor Chain/ Studless Achor Chain
Grade U1, U2, U3
Size 10-70mm
Surface Black Painted, Self Color, Hot Dip Galvanized
Package Iron Drum, Wooden Box or others as request
Origin China
ODM/OEM Acceptable

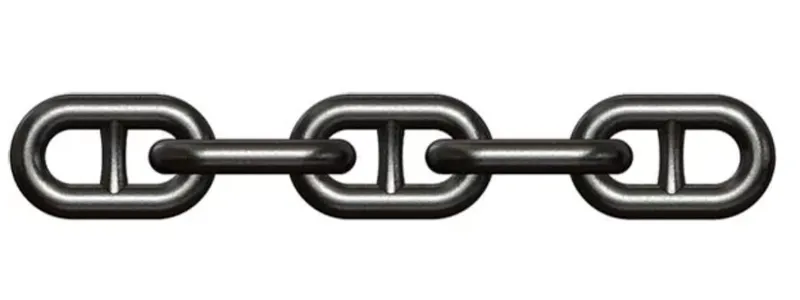

Stud Anchor Chain
Stud Anchor Chain

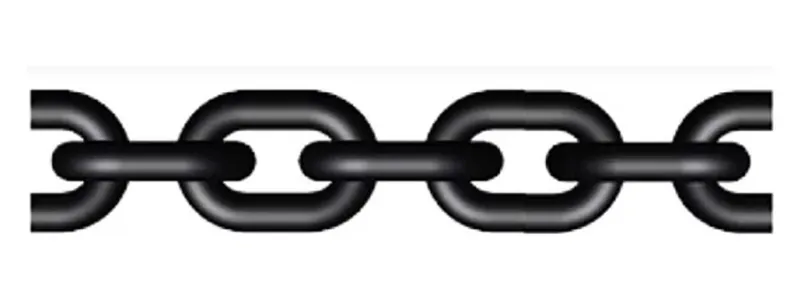

Studless Anchor Chain
Studless Anchor Chain
Anchor Chain
Anchor Chain
Stud Anchor Chain
Diameter Chain Link Size U1 Stud Link Chain U2 Stud Link Chain U3 Stud Link Chain Approx Weight
Qutside Length Outside Width Proof Load Breaking load Proof Load Breaking load Proof Load Breaking load 27.5M
INCH MM MM MM KN KN KN KN KN KN KG
1/2 12.5 75 45 46 66 66 92 92 132 98.00
9/16 14 84 50.4 58 82 82 116 116 165 119.00
5/8 16 96 57.6 76 107 107 150 150 216 156.00
11/16 17.5 105 63 89 127 127 179 179 256 186.00
3/4 19 114 68.4 105 150 150 211 211 301 230.00
13/16 20.5 123 73.8 123 175 175 244 244 349 260.00
7/8 22 132 79.2 140 200 200 280 280 401 300.00
15/16 24 144 86.4 167 237 237 332 332 476 370.00
1-1/16 26 156 93.6 194 278 278 389 389 556 431.00
1-1/8 28 168 100.8 225 321 321 449 449 642 496.00
1-3/16 30 180 108 257 368 368 514 514 735 564.00
1-1/4 32 192 115.2 291 417 417 583 583 833 635.00
1-5/16 34 204 122.4 328 468 468 655 655 937 712.00
1-7/16 36 216 129.6 366 523 523 732 732 1050 800.00
1-1/2 38 228 136.8 406 581 581 812 812 1160 887.00
1-9/16 40 240 144 448 640 640 896 896 1280 1032.00
1-5/8 42 252 151.2 492 703 703 981 981 1400 1084.00
1-3/4 44 264 158.4 538 769 769 1080 1080 1540 1197.00
1-13/16 46 276 165.6 585 837 837 1170 1170 1680 1310.00
1-7/8 48 288 172.8 635 908 908 1270 1270 1810 1438.00
2 50 300 180 686 981 981 1370 1370 1960 1546.00
2-1/16 52 312 187.2 739 1060 1060 1480 1480 2110 1661.00
2-1/8 54 324 194.4 794 1140 1140 1590 1590 2270 1791.00
2-3/16 56 336 201.6 851 1220 1220 1710 1710 2430 1926.00
2-5/16 58 348 208.8 909 1290 1290 1810 1810 2600 2086.00
2-3/8 60 360 216 969 1380 1380 1940 1940 2770 2249.00
2-7/16 62 372 223.2 1030 1470 1470 2060 2060 2940 2361.00
2-1/2 64 384 230.4 1100 1560 1560 2190 2190 3130 2516.00
2-9/16 66 396 237.6 1160 1660 1660 2310 2310 3300 2676.00
2-11/16 68 408 244.8 1230 1750 1750 2450 2450 3500 2885.00
2-3/4 70 420 252 1290 1840 1840 2580 2580 3690 3010.00
Studless Anchor Chain
Diameter Chain Link Size U1 Open Link Chain U2 Open Link Chain U3 Open Link Chain Approx Weight
Qutside Length Outside Width Proof Load Breaking load Proof Load Breaking load Proof Load Breaking load 27.5M
INCH MM MM MM KN KN KN KN KN KN KG
1/2 12.5 75 45 28.75 57.81 41.20 82.60 56.40 112.80 85.41
9/16 14 84 50.4 34.78 69.93 51.00 101.90 70.76 141.51 106.55
5/8 16 96 57.6 47.10 94.72 66.20 132.30 92.42 184.83 139.43
11/16 17.5 105 63 56.35 113.31 78.89 157.78 110.55 221.10 178.35
3/4 19 114 68.4 66.42 133.57 93.60 187.20 130.32 260.64 217.68
13/16 20.5 123 73.8 77.33 155.49 108.64 217.27 151.70 303.42 229.14
7/8 22 132 79.2 89.06 179.08 125.40 25090.00 174.40 349.40 264.49
15/16 24 144 86.4 105.98 213.25 149.90 298.90 207.90 415.80 341.82
1-1/16 26 156 93.6 124.38 250.12 175.40 350.80 244.00 488.00 369.94
1-1/8 28 168 100.8 144.26 290.08 203.80 406.70 283.00 566.00 427.04
1-3/16 30 180 108 165.60 333.00 234.20 467.50 324.90 649.80 490.98
1-1/4 32 192 115.2 188.42 378.88 265.60 531.20 369.60 739.30 559.65
1-5/16 34 204 122.4 212.70 427.72 299.90 599.80 417.30 834.60 671.52
1-7/16 36 216 129.6 238.46 479.52 336.10 672.30 467.80 935.70 707.85
1-1/2 38 228 136.8 265.70 534.28 374.40 748.70 521.30 1042.50 788.98
1-9/16 40 240 144 294.40 592.00 414.50 829.10 577.60 1155.20 869.36
1-5/8 42 252 151.2 324.58 652.68 457.70 915.30 636.80 1273.60 959.30
1-3/4 44 264 158.4 356.22 716.32 502.70 999.60 698.90 1398.00 1111.25
1-13/16 46 276 165.6 389.34 782.92 548.80 1097.60 763.90 1527.80 1152.07
1-7/8 48 288 172.8 423.94 852.48 597.80 1195.60 831.70 1663.50 1256.26
2 50 300 180 460.00 926.09 648.80 1239.60 902.50 1805.00 1360.41
2-1/16 52 312 187.2 497.54 1000.48 697.63 1395.26 976.14 1952.28 1485.61
2-1/8 54 324 194.4 536.54 1078.92 752.33 1504.66 1052.68 2105.36 1648.08
2-3/16 56 336 201.6 577.02 1160.32 809.09 1618.18 1132.10 2264.20 1715.97
2-5/16 58 348 208.8 618.98 1244.68 867.91 1735.82 1214.40 2428.80 1844.50
2-3/8 60 360 216 662.40 1332.00 928.80 1857.60 1299.60 2599.20 1973.29
2-7/16 62 372 223.2 707.30 1422.28 991.75 1983.50 1387.68 2775.36 2101.56
2-1/2 64 384 230.4 753.66 1515.52 1056.77 2133.54 1478.66 2957.32 2298.47
2-9/16 66 396 237.6 801.50 1611.72 1123.85 2247.70 1572.52 3145.04 2398.10
2-11/16 68 408 244.8 850.82 1710.88 1192.99 2385.98 1669.26 3338.52 2522.88
2-3/4 70 420 252 901.60 1813.00 1264.20 2528.40 1768.90 3537.80 2697.65

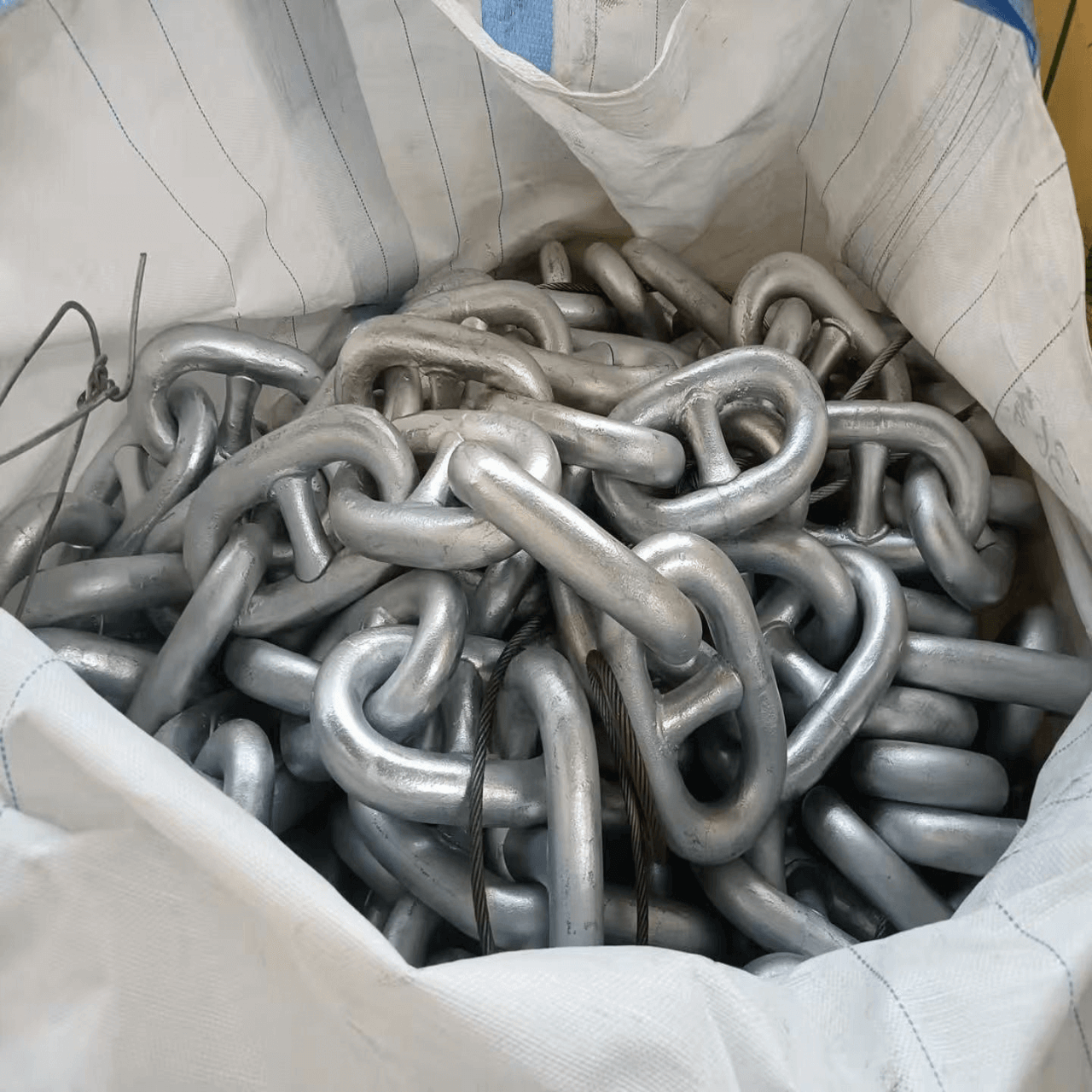

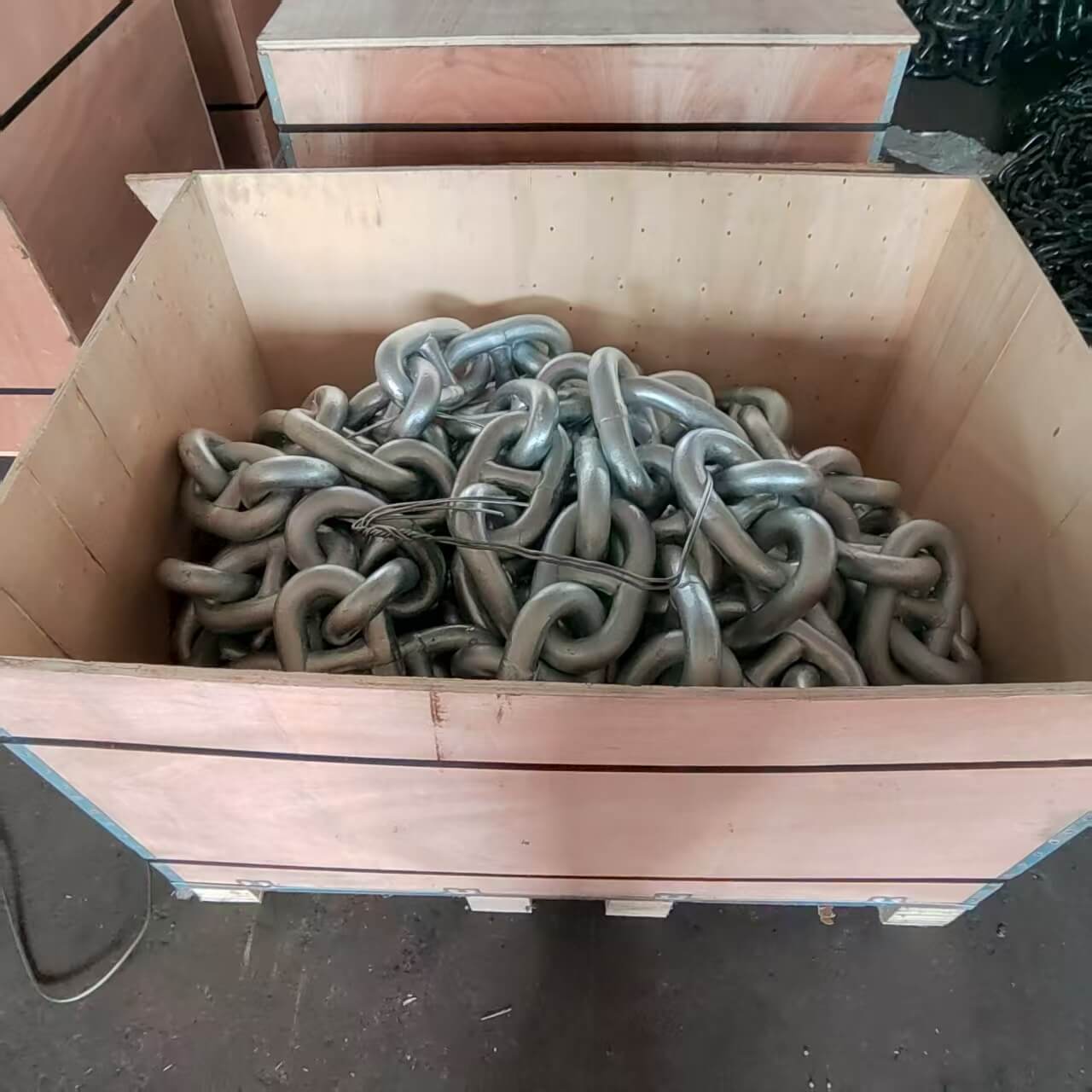

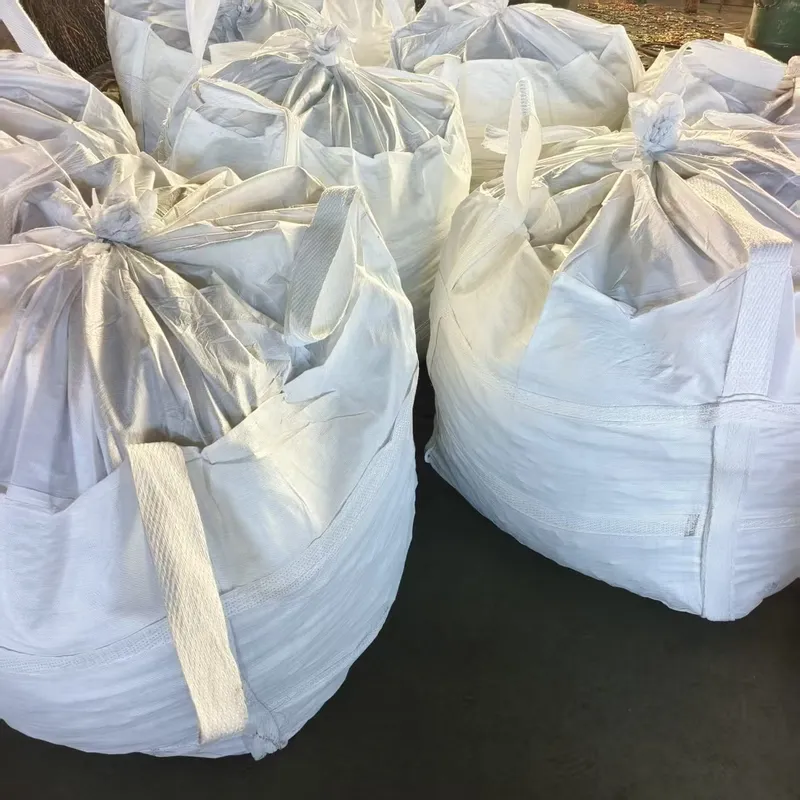

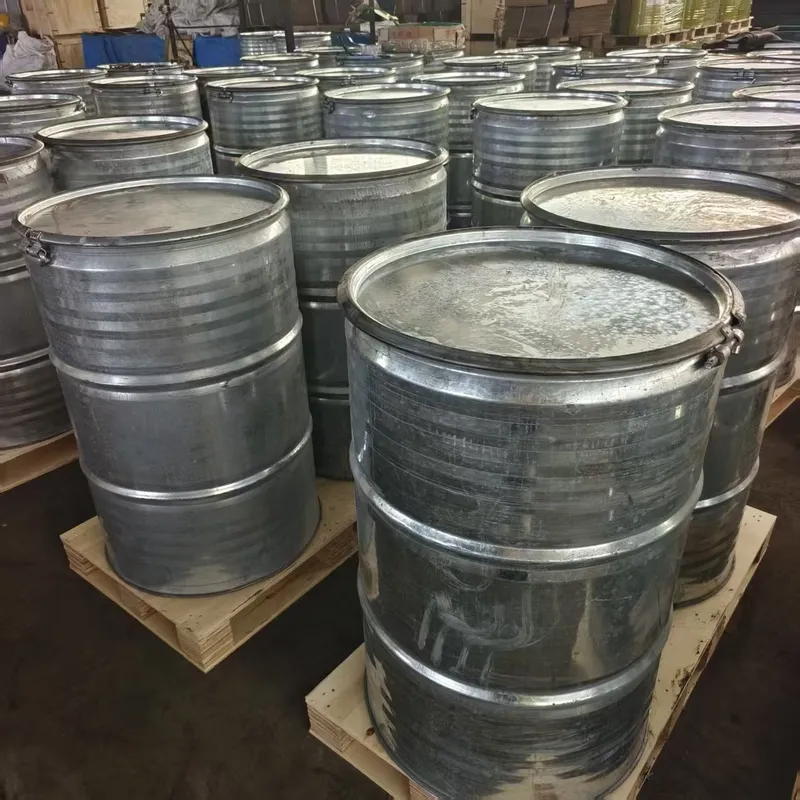

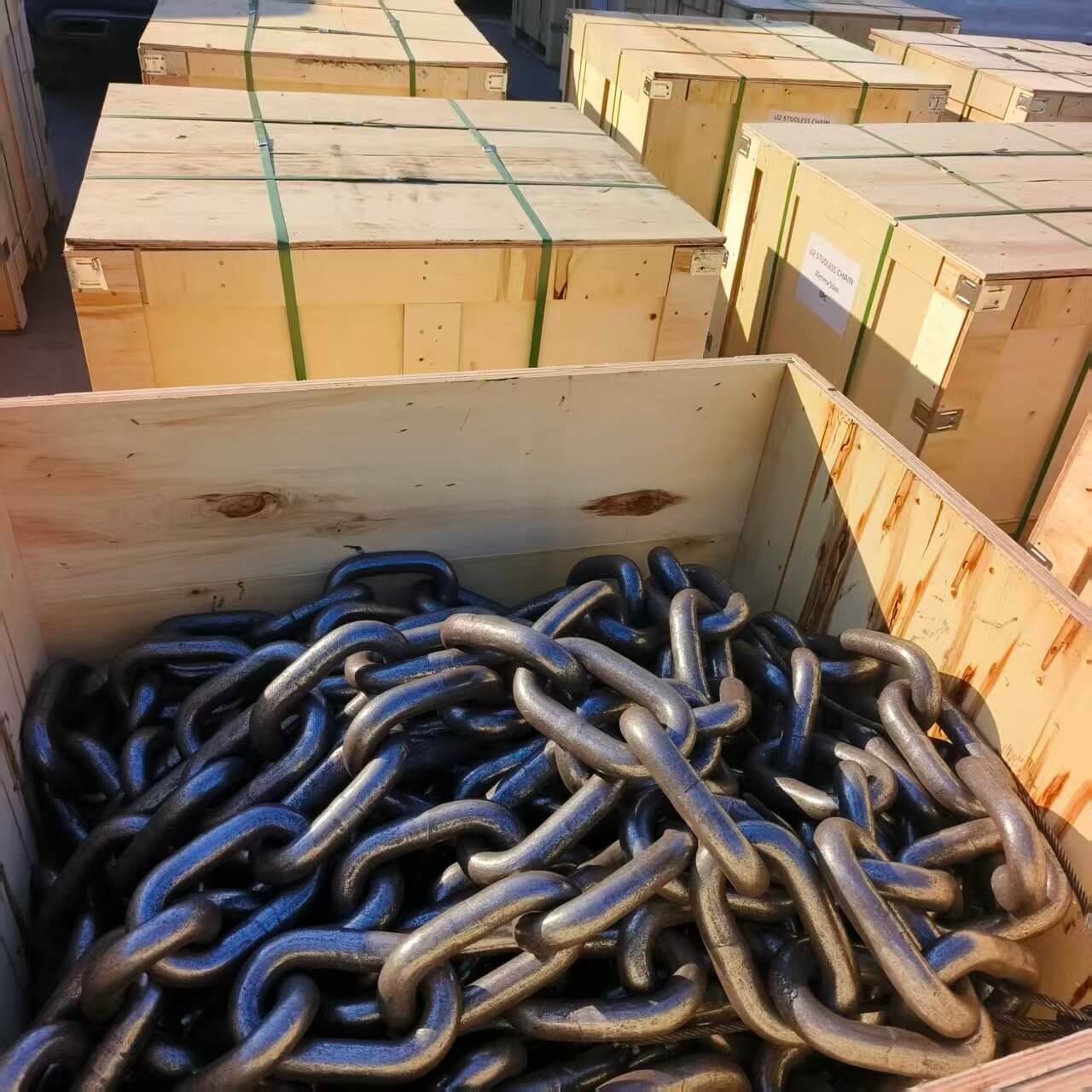

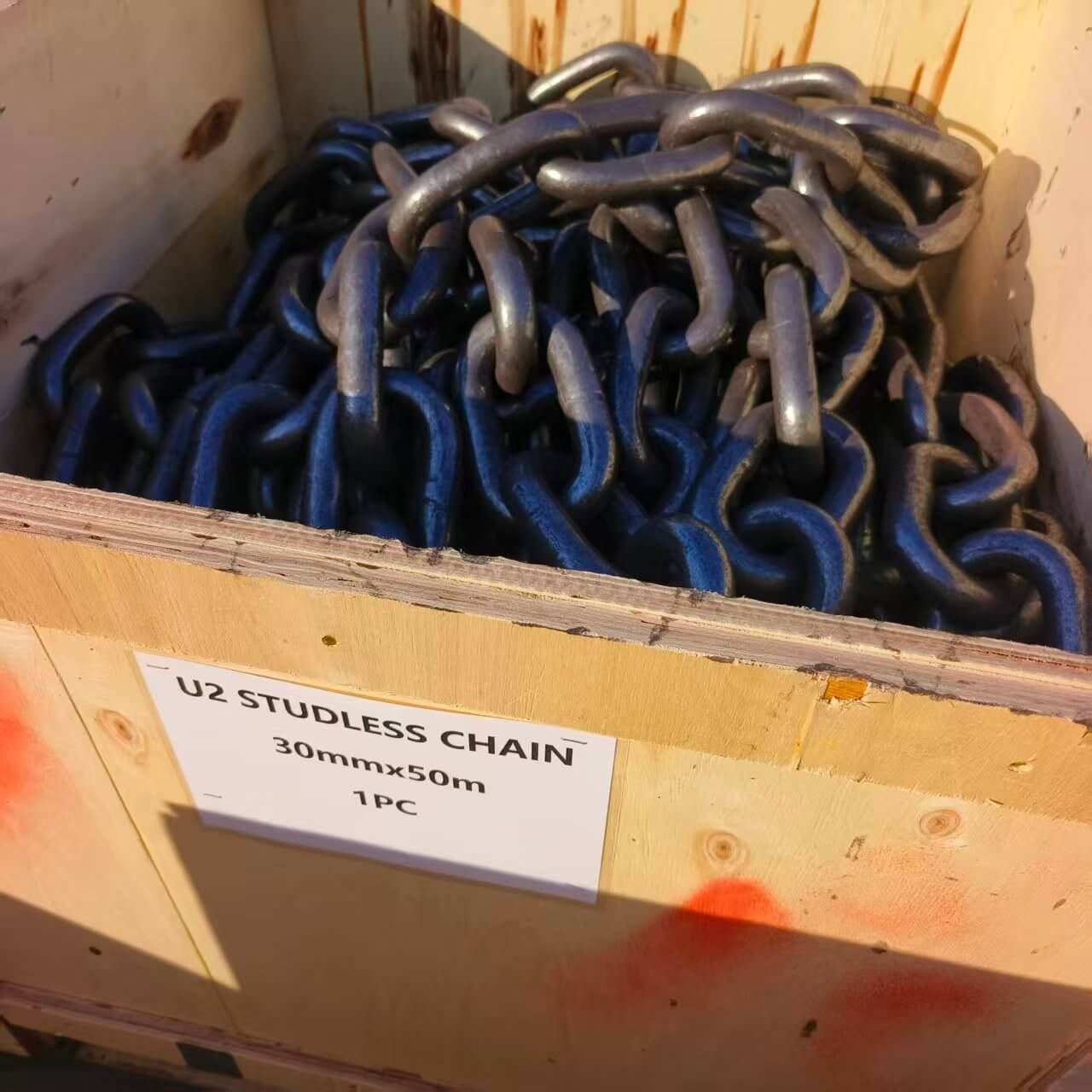

Main Packaging Method

Our Advantages

Focus on every process, make you satisfied, save your costs and time !
01

Factory Direct Supply

02

Professional and Concentration in Link Chain Products

03

Reasonable and Competitive Price

04

Support Customization

05

Prompt Delivery

06

Thoughtful After-sales Service

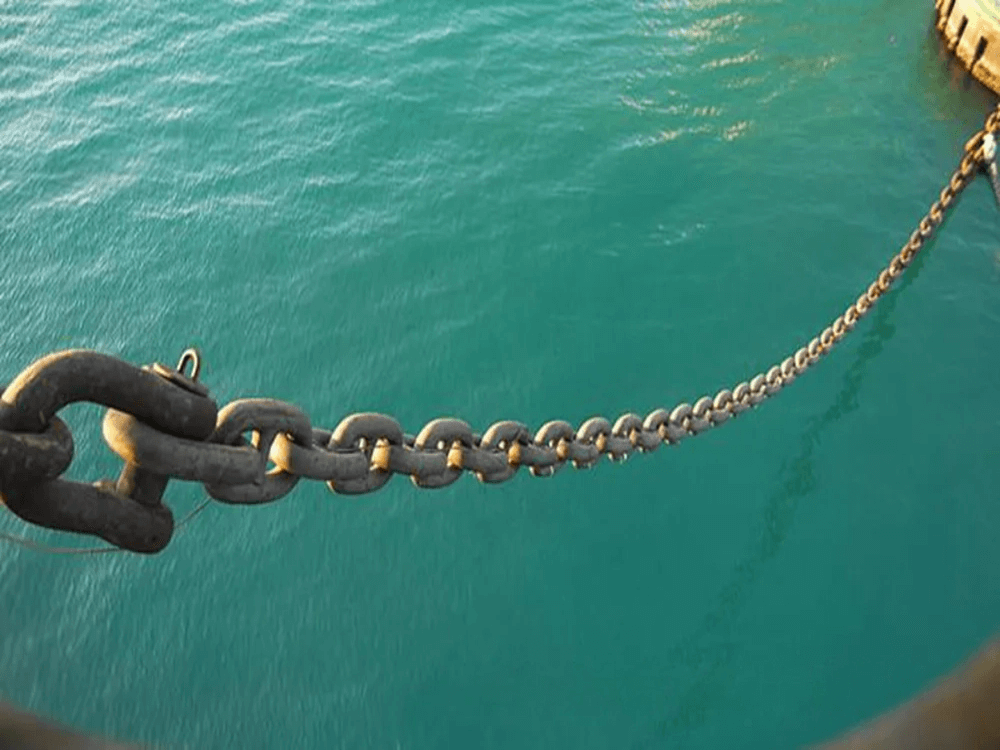

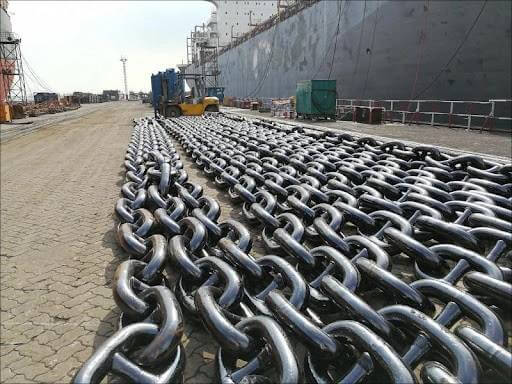

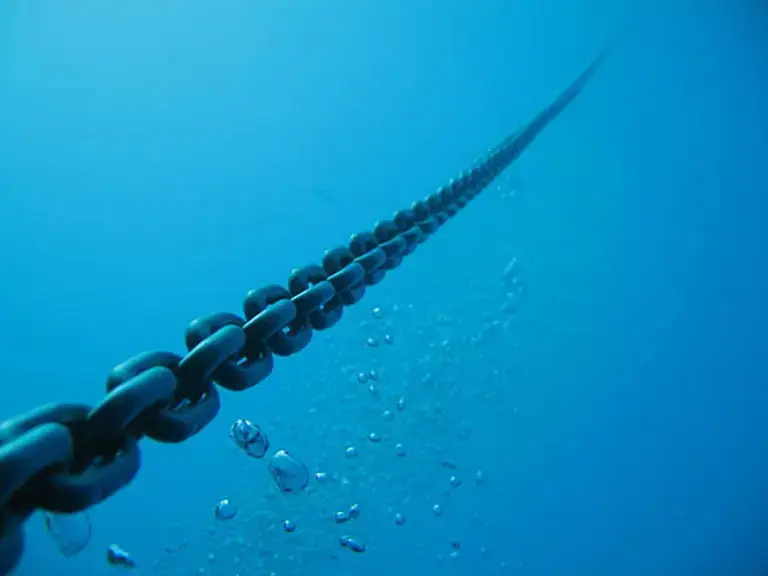

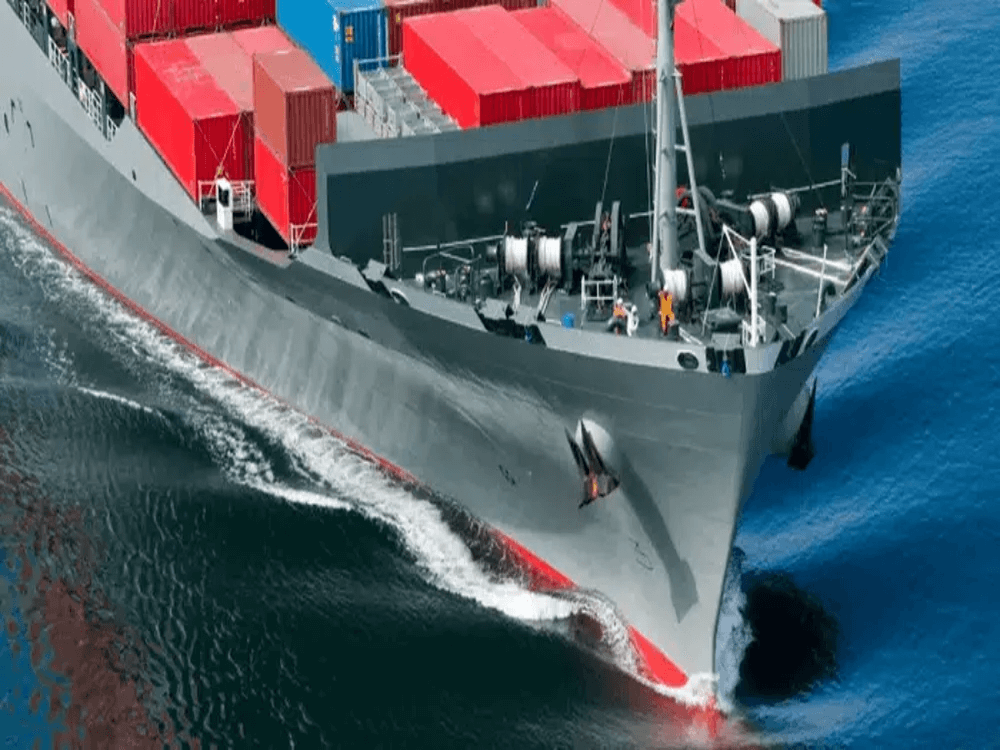

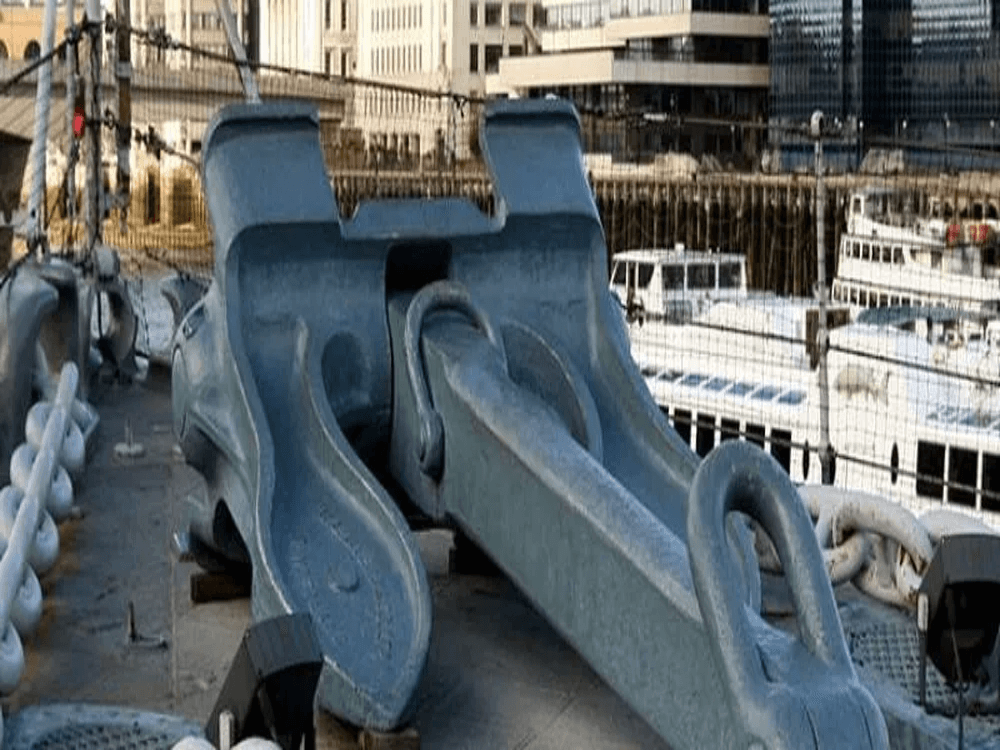

Application

Get In Touch

Related Products

Lashing Chain
Rigging Hardware
Slaughter Chain
G80 Mining Chain DIN22252
G80 Lifting Chain EN818-2
Egg Conveyors/Egg Collection System for Egg Transport

Production Processing

High-quality raw materials
1. High-quality raw materials
Material dimension unity to remove the dust
2. Material dimension unity to remove the dust
Link Ring Knitting
3. Link Ring Knitting
Link Ring Welding
4. Link Ring Welding
Cut to required length
8. Cut to required length
Visual inspection of each ring
7. Visual inspection of each ring
Stretch and Calibration
6. Stretch and Calibration
Heat Treatment
5. Heat Treatment

Surface Treatment

Color Galvanized
White Zinc Plating
Black Oxide
Hot Dipped Galvanized
Polished + Transparent Oil

Focus on every process, make you satisfied, save your costs and time !

  • Factory Direct Supply
  • Professional and Concentration in Link Chain Products
  • Reasonable and Competitive Price
  • Support Customization
  • Prompt Delivery
  • Thoughtful After-sales Service

Experienced production process

Over the years, dedicated to the production and sales of various chains, with rich production experience and mature technology.

Complete Specifications and Support Customization

Various link chain specifications, customization available according to requirements, meeting your one-stop purchasing needs.

Original Direct Factory Supply with Reasonable and Competitive Price

Factory goes directly to customers, eliminate multiple intermediate steps, offer discounted price.

Only select high-quality raw materials
Stable quality and sufficient supply
Nice-looking Appearance
Refined craftsmanship, striving for perfection
Not Easy to Rust and Long Service Life
